Trailer Chassis Beam Welding Machines & Systems

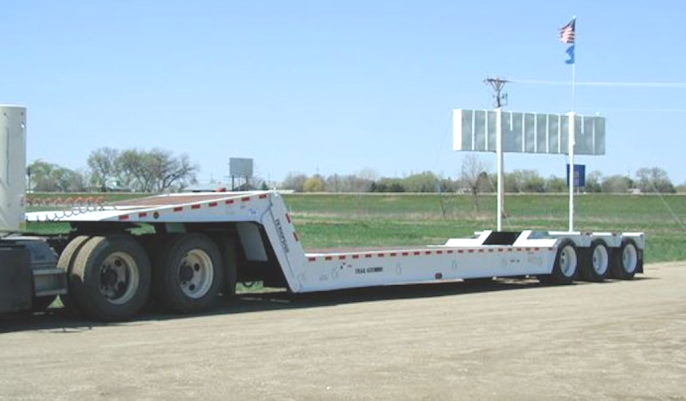

The “Trailer Beam Welding Machine” used to produce trailer beams with parallel cum taper combination with unequal height flanges & “z” shaped beams for trailer manufacturer.

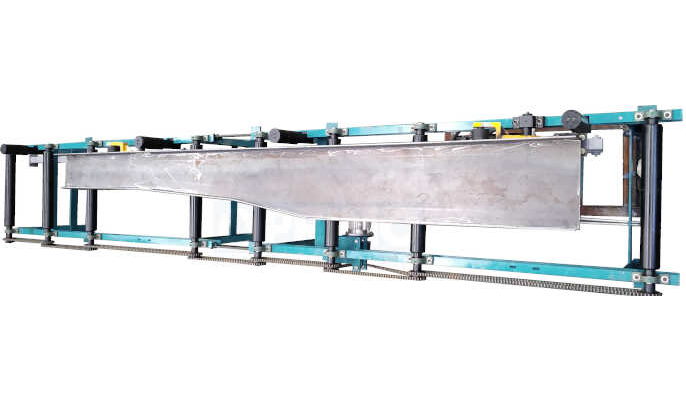

The machine consists of infeed conveyors to feed the web & flange plates, beam assembly, tack weld and full weld station and outfeed conveyors.

In addition to above, hydraulically operated flange lifting system to accommodate various height of flanges at the infeed and outfeed conveyors and special system in the full welding station.

The welding process is SAW (submerged arc welding) twin wire with flux feeding and recovery system.

Weld Position: 2f, welding both lh and rh side simultaneously on the top side.

Optional material handling system such as, beam cross transfer and beam 180-degree tilter can be provided.

Features: Automatic Beam Forming System, Automatic Full Welding System & Automatic Flux Feeding and Recovery System. Special type of return current collecting system.

Model: “ATBW 600” can be offered based on customer requirements.
