"PRIMO" is a well renowned Welding
Automation company from Chennai, India. We are known in the industry for our wide range of Welding SPM products.
Involved in Conceptualization, Designing, Manufacturing, Supplying, and Exporting
unbeatable World class “Welding SPM
Machineries”. The products offered by
us are configured to meet the dynamic expectations of the users in the best
possible manner.
Our welding machines are appreciated by our clients
for their application specific design, Assured Reliability, Extended Durability,
User friendly and Easy to maintain. Our “Automatic Hydraulic
Cylinder Welding System SPM” is one such product that
falls in the lineage. We have catered these range of Welding SPMs to all major
Hydraulic cylinder manufacturers in India.
We offer a wide range of product flexilibilty for Hydraulic Cylinder
Welding System with the following 4 machine configuration options :
1.
The basic machine comprises of
manual positioning of Welding head by the operator for every cycle.
2.
The Semi Automatic version of the
machine is equipped with PLC Controlled auto positioning slides for Torch
positioning and sequencing.
3.

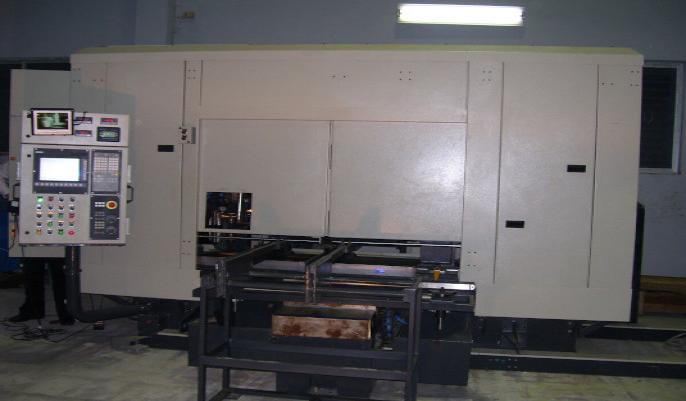

The Automatic Version of the
machine is completely autonomous with CNC controlled Welding head for complete
auto positioning & machine sequencing.
4.

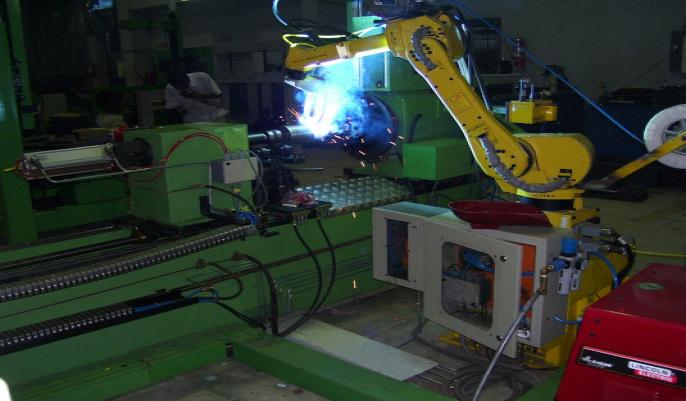

We have the advanced version of
this machine with Arc Welding Robot for Hydraulic Cylinder Welding.
|
List of Modules of Hydraulic
Cylinder Welding SPM System |
|
· Fixed
Head Stock & movable motorized
Tail Stock on Linear Slide unit for accommodating various lengths of
Cylinder. · The
Head stock is equipped with a self centering expanding chuck and the tail
stock is equipped with Pneumatic Dead center for clamping of the Hydraulic
cylinder Barrel, · Side
Beam carriage with Motorized XYZ slides & MIG Welding Head. · Depending
on the customer’s expectation, the cylinder barrel handling is also automated
with a walking beam arrangement for auto positioning of Hydraulic cylinder
barrel inside the welding station and the same procedure for unloading of the
welded Hydraulic cylinder. · Multi
Layer Welding sequencing with
provision for automatic selection of welding parameter including Welding
Voltage, Current & Rotation speed, Oscillation speed parameters. Torch
vertical shift distance, etc. · The
above Parameterization window is Recipe based in case of PLC & CNC
Version. Where in Robotic Version, it is completely governed with Robot
Sequencing program. · Torch
Service center for Robotic version. |
Product
Specifications:
|
FEATURES |
BRIEF MACHINE SPECIFICATION |
|
Process Type |
MIG/TIG/SMAW |
|
Model Name/Number |
PAS-HCW-Basic PAS-HCW-CNC PAS-HCW-ADV |
|
Machine Modules |
Our Hydraulic
Cylinder Welding SPM can be configured in 3 different categories namely: 1. Basic
machine with Start / stop control with adjustable Limit switches. 2. Medium
level automation with close loop control for length control. 3. High end
Servo controlled system for precise applications. Optional
Servo control for precise positioning. Operator
Pendant with Touch 7 Inch HMI. Upgradation options available. Pneumatic
Cylinder clamping mechanism. Optional advanced clamping mechanism also can be
offered. Torch
adjustment XYZ slides with manual handles. Optional
motorized mechanism for XYZ slides. |
|
Product Specifications |
Material: Mild
Steel Usage/
Application: For Welding Hydraulic Cylinders. Welding
Type: MIG Welding Output
Current: < 350 Amps Production
Capacity: Please discuss with our Sales team.. Clamping
Type: Pneumatic |
|
Automation Grade |
Semi-Automatic Hydraulic
Cylinder Welding SPM Automatic PLC Controlled Hydraulic
Cylinder Welding SPM CNC Controlled Hydraulic Cylinder Welding SPM with Auto Loading
& Unloading. Robotic Hydraulic Cylinder
Welding SPM with Auto Loading &
Unloading. |
|
Special Hydraulic Cylinder Welding SPM Application |
Please discuss with our Sales /
Technical team about your exact requirement to offer our Best available Hydraulic
Cylinder welding system solutions. |
|
Photo / Video Gallery Link |
|
Application of Hydraulic Cylinder Welding System |
|
· Hydraulic
Cylinder CEC End Cap welding system. · Hydraulic
Cylinder Barrel welding system · Hydraulic
Cylinder Rod Coupling welding system.. · Hydraulic
Cylinder Port welding automation. · Hydraulic
Cylinder Bottom Flange to Barrel Welding system. · Hydraulic
Cylinder fabrication for Excavator yellow goods industry. · Hydraulic
Cylinders for Shipping industry. · Welding
Hydraulic lifting cylinder for Trucks and Locomotives. · Door
Open close Hydraulic cylinder welding |
